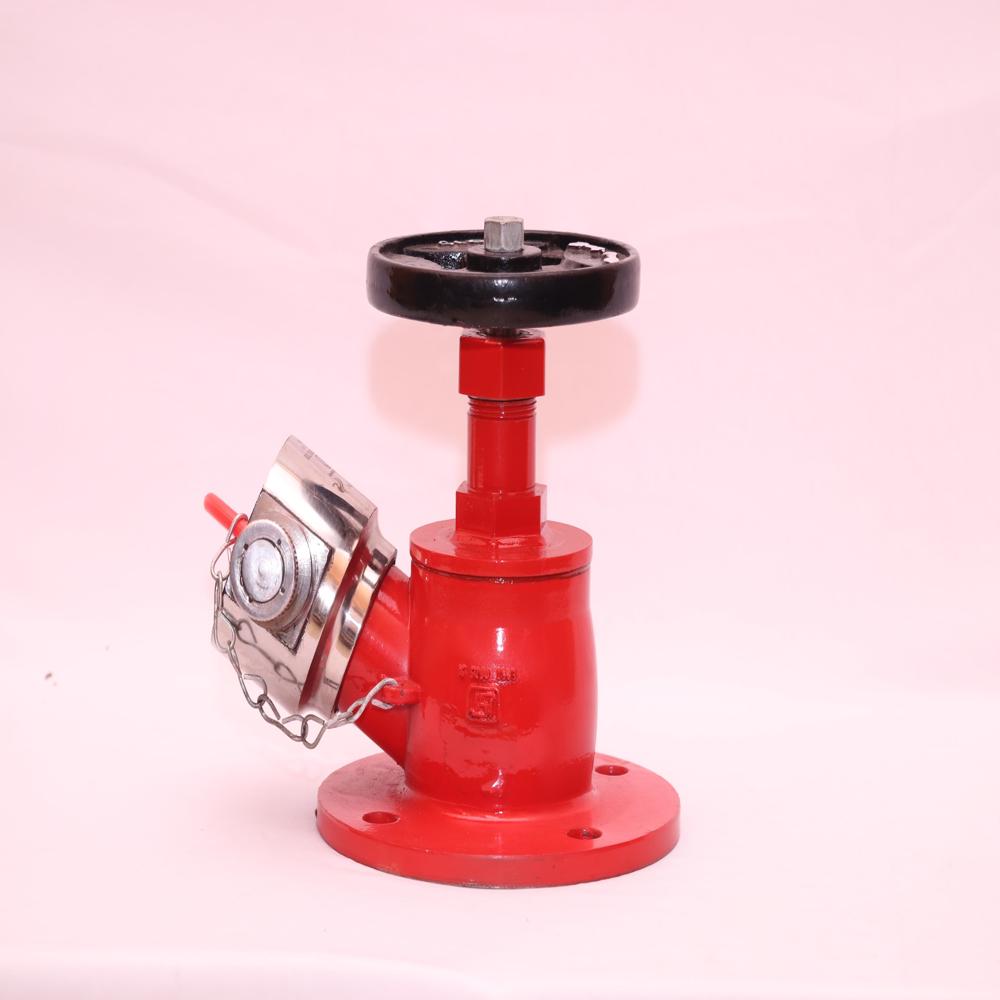

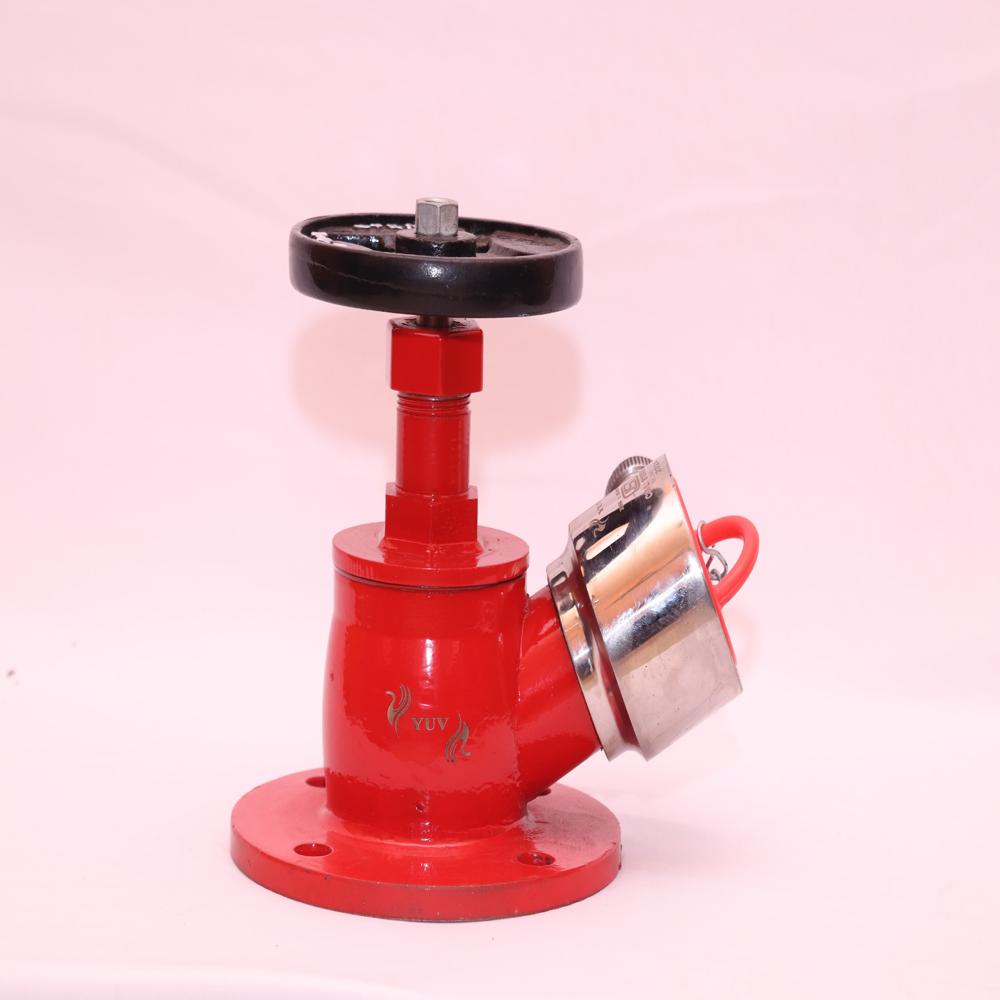

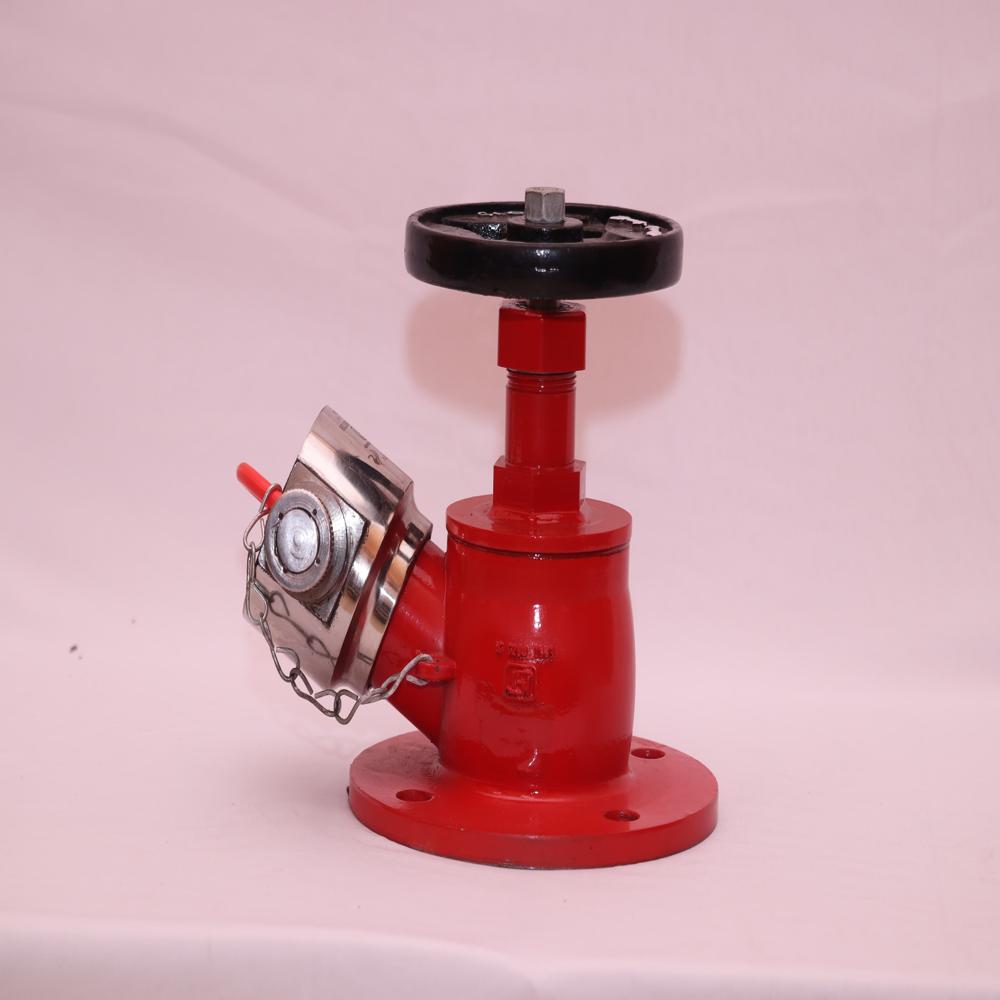

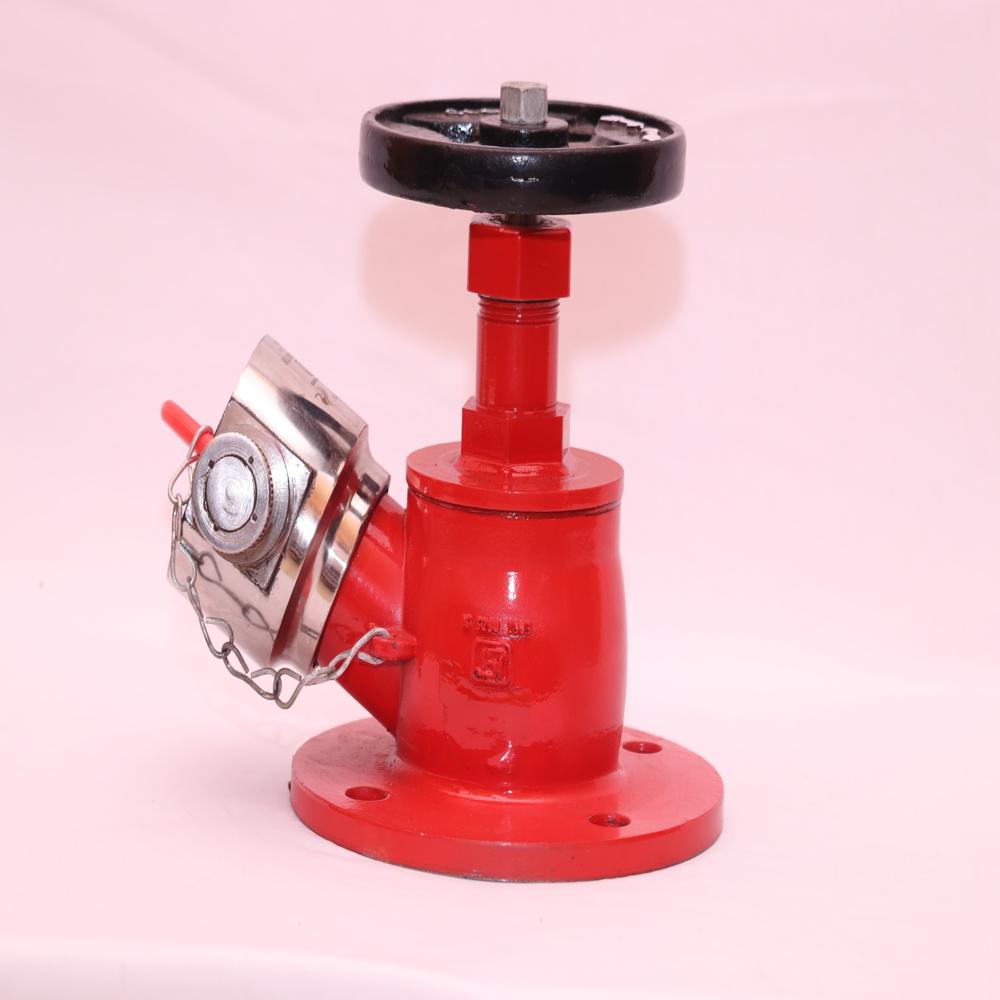

FIRE HYDRANT VALVE

Name: FIRE HYDRANT VALVE
Brand: KOTHARI FIRE SAFETY EQUIPMENTS
Price: 2450.00 INR
Availability: InStock

Price 2450.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FIRE HYDRANT VALVE Specification

Product Type
SS BODY

Dimension (L*W*H)
5290 Centimeter (cm)

Weight
8.5 Kilograms (kg)

Operating Pressure
10 N/cm2

Application
FIRE FIGHTING EQUIPMENT

Capacity
10 Kg

FIRE HYDRANT VALVE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About FIRE HYDRANT VALVE

Fire hydrant valve specification details includedesign standards (e.g.,IS:5290in India), material types (gunmetal, bronze, stainless steel), testing pressures (e.g., 21 kgf/cm for body, 14 kgf/cm for seat), flow rates (e.g., 900-1800 LPM), and outlet sizes (e.g.,63mm female instantaneous), as well as inlet specifications like flange size and bolt hole patterns.

Key Specification Details

Standards:Valves typically conform to standards such asIS:5290 (Indian standard)for landing valves, which specifies design, materials, and testing requirements.
Materials:Common materials include gunmetal, bronze (like IS:318 Gr.LTB-2), and stainless steel (SS304) for the body, bonnets, and other parts.
Testing Pressure:
- Body/Hydrostatic Test:21 kgf/cm (or higher) is applied to the valve body.
- Seat/Water Tightness Test:14 kgf/cm is applied to check for water tightness at the valve seat.
Flow Rate:Valves are rated for a minimum flow rate, often 900 LPM or 1800 LPM, at a specific outlet pressure (e.g., 7 kgf/cm).
Outlet:Usually, a 63mm female instantaneous type outlet is provided for easy connection to fire hoses.
Inlet:The inlet is typically flanged, with standards like a 200mm Outer Diameter (OD) flange and 16mm holes for connection to the main water supply.
Design Types:Valves can be single or double-headed, with Type-A and Type-B being common variations.
Other Features:
- Paint:Valves are often painted bright fire red for high visibility.

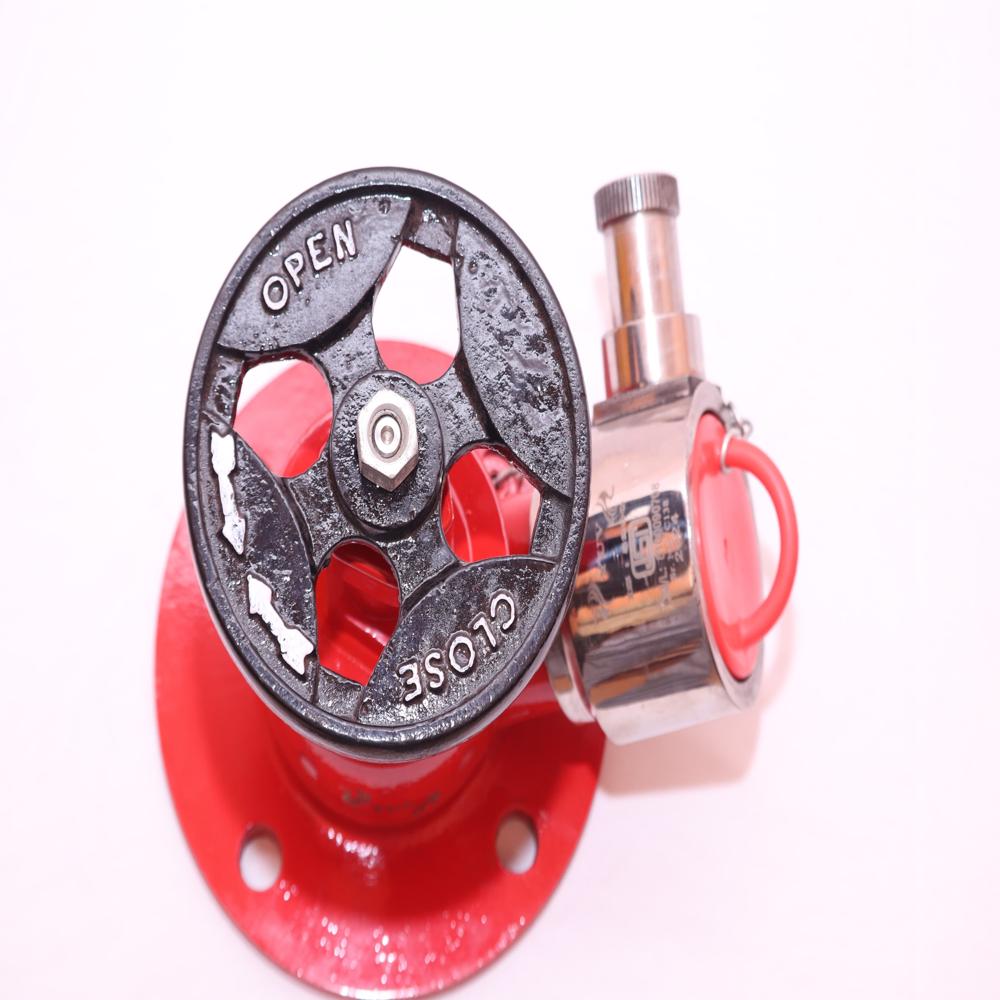

- Handwheel:A Cast Iron (CI) handwheel is used for manual operation of the valve.
- Protection:A PVC or aluminium blank cap with a chain protects the outlet when not in use.
- Spindle/Gland:Made from materials like stainless steel and fitted with a gland (which may use PTFE packing) for long life and smooth operation.
